We are a pcb assembly manufacturer from China with 10 years of experience. We have a pcb SMT production line, which can provide you with pcb design, pcb assembly, 24-hour fast sample making and fast product delivery.
1、The PCB SMT products we have served include computers, mobile phones, projectors, landlines, tablets, air pumps, headphones, Bluetooth smart glasses, keyboards, interpreters, smart watches, etc. We look forward to providing you with PCBA services.

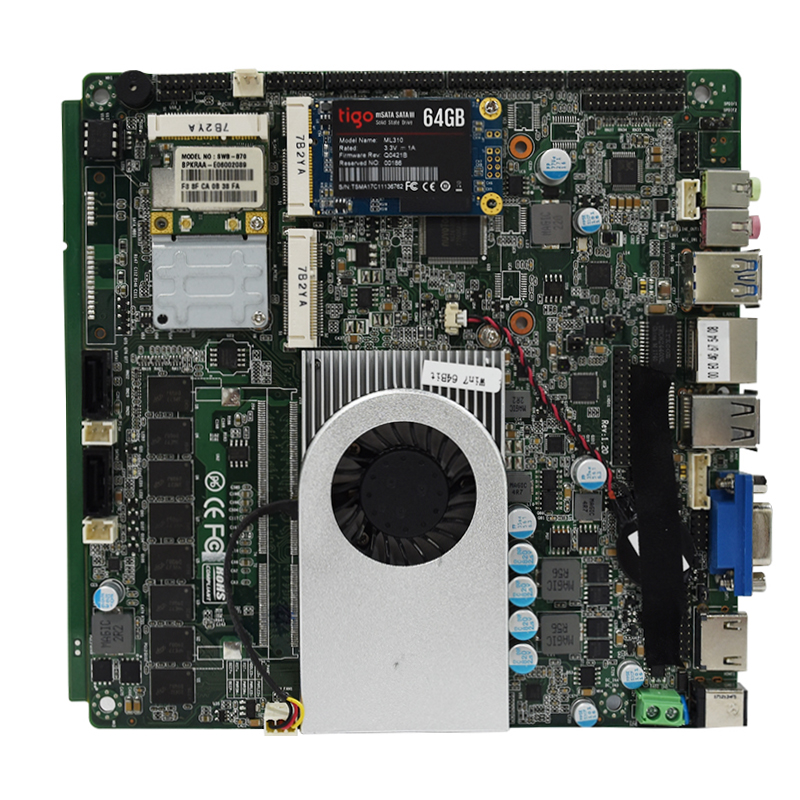

Mini computer motherboard from pcb to PCBA▲

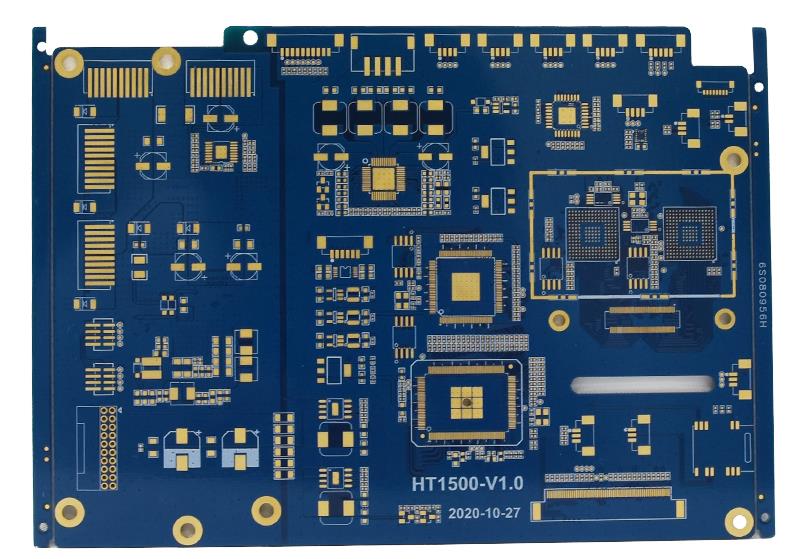

Projector motherboard from pcb to PCBA▲

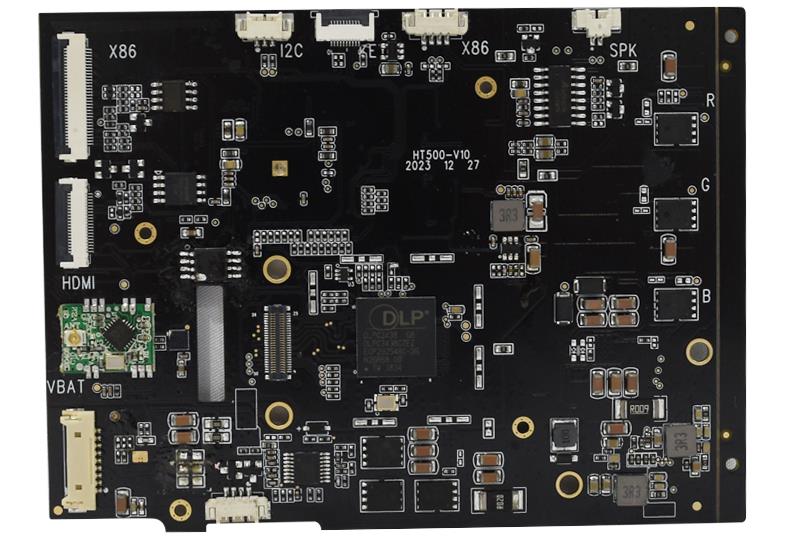

Projector motherboard from pcb to PCBA▲

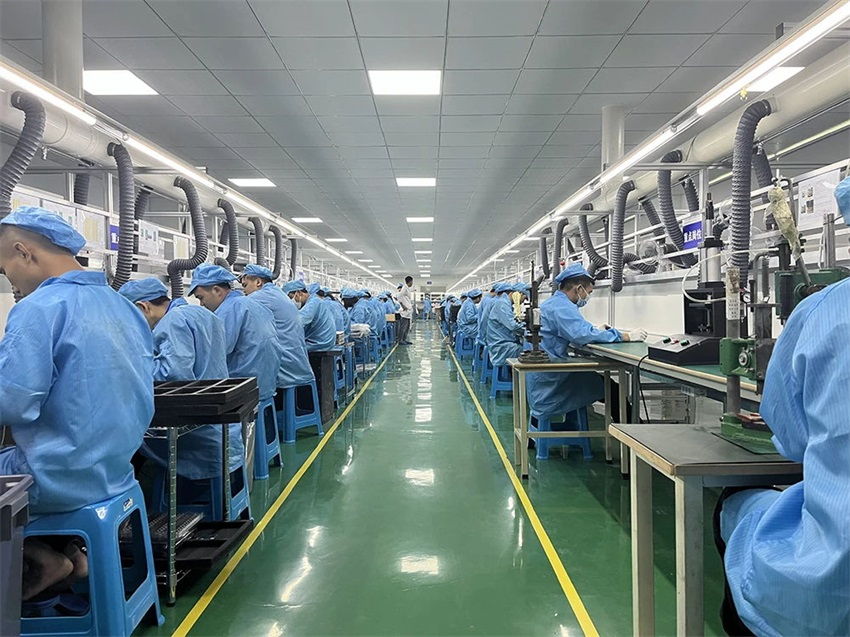

This is our pcb SMT production workshop▲

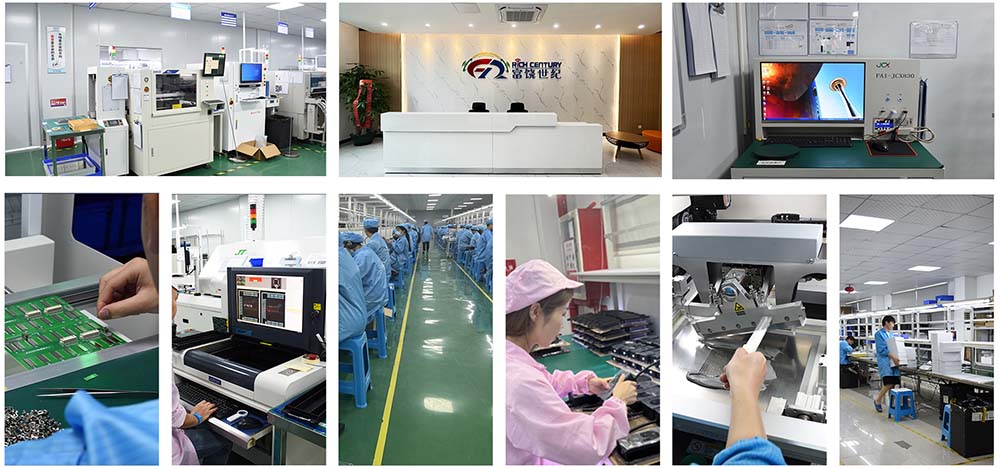

Welcome to visit our pcb SMT production workshop▲
2、About PCB and SMT
1、Supports complex processes such as 1-36 layer multi-layer boards, HDI, blind buried holes, BGA, in tray holes, gold fingers, resin plug holes, laser drilling, and 3mil line width line spacing.
2、PCB process capability Maximum number of floors 40L，Maximum plate thickness 8.0mm，Minimum plate thickness 0.4mm，Maximum thickness to diameter ratio 14:01，Maximum copper thickness 10OZ，Maximum working plate size 2000x610mm，The thinnest 4-layer board is 0.33mm，Minimum mechanical hole/pad 0.15/0.35mm，Drilling accuracy+/-0.025mm，PTH aperture tolerance+/-0.03mm，Surface treatment ENIG/OSP/HASL/Au Plating (soft/hard)/Immersion Ag/Immersion Tin/Bright Tin Plating/Ag Plating/Carbon Ink.
Support the production of HDI, blind buried holes, and FPC flexible circuit boards
